Aeromotive

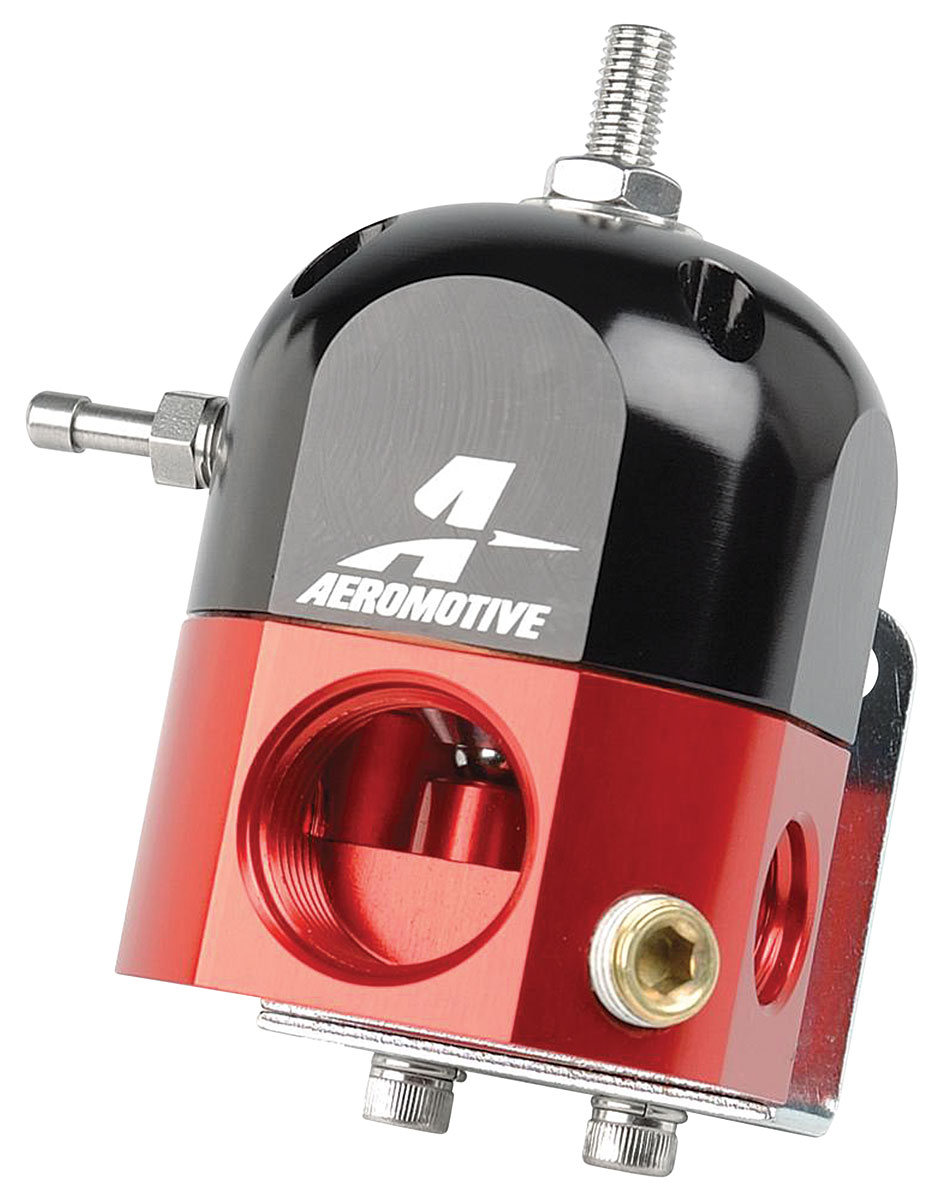

Regulator, Fuel Pressure, Aeromotive, A1000, Carbureted

Vehicle Specific View fitment for 21 models
Part# ARO3204
Mfg# 13204
Sold As Each
$226.99
List Price: $250.95
You Save $23.96
Arriving Soon
Add To Wishlist

EFI and carbureted applications

Made of anodized billet aluminum, these fuel pressure regulators from Aeromotive are the best on the market. Available for both electronic fuel injected or carbureted applications, the Aeromotive A1000 bypass fuel pressure regulators are meant for medium to high horsepower applications to control fuel pressure to an optimum level. These regulators can be used in either gasoline or alcohol configurations as well as supercharged or turbocharged engines. Each bypass fuel pressure regulator comes with easy to follow instructions to ensure you have the system set up correctly.

Electronic fuel injected regulator: Base pressure adjustable from 40-75 psi, 1/8" NPT gauge port, (2) ORB-10 inlet ports, (1) ORB-06 return port, 1:1 boost/vacuum rise ratio. Carbureted regulator: Base pressure adjustable from 3-15 psi, 1/8" NPT gauge port, (1) ORB-10 inlet port, (1) ORB-08 return port, (2) ORB-06 outlet ports, 1:1 boost/vacuum rise ratio.

Notes

  • Carbureted applications require AN-08 return line from bottom of regulator to the top of the fuel tank.
  • This item is not eligible for any further discounts or promotional pricing.
3
This product is not legal for street use on an emissions-controlled vehicle. It may be used on dedicated competition or pre-pollution-controlled vehicles only. Learn More

Find Item In These Catalogs

  • 2024 Cadillac 1936-1993 97
  • 2024 Chevelle, El Camino 64-77 277
  • 2024 Cutlass, F-85 & 442 61-77 183
  • 2023 GM G-Body 1978-1988 118
  • 2023 Grand Prix 1962-77 146
  • 2024 GTO, LeMans & Tempest 199
  • 2024 Monte Carlo 70-77 143
  • 2024 Riviera 1963-76 67
  • 2024 Skylark, GS & GSX 61-72 158
WARNING: This product can expose you to chemicals including lead, sulfur, nickel, chromium, vanadium, titanium, polyvinyl chloride, and 4,4’-methylenebis (2-chloroaniline), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Vehicle Fitment

Year Make Model Application Details
1982 Buick Grand National
1984–1987 Buick Grand National
1976–1987 Buick Regal 1978–1987: carbureted
1963–1976 Buick Riviera carbureted
1961–1972 Buick Skylark carbureted
1983–1987 Buick T-Type
1967–1990 Cadillac DeVille carbureted
1967–1990 Cadillac Eldorado carbureted
1967–1990 Cadillac Fleetwood carbureted
1964–1977 Chevrolet Chevelle carbureted
1960–1964 Chevrolet Corvair carbureted
1961–1965 Chevrolet Corvair FC carbureted
1964–1987 Chevrolet El Camino 1964–1977: carbureted
1978–1987: carbureted
1978–1983 Chevrolet Malibu carbureted
1970–1987 Chevrolet Monte Carlo 1970–1977: carbureted
1978–1987: carbureted
1961–1987 Oldsmobile Cutlass 1961–1977: carbureted
1978–1987: carbureted
1959–1976 Pontiac Bonneville carbureted
1982–1986 Pontiac Bonneville carbureted
1959–1976 Pontiac Catalina carbureted
1962–1976 Pontiac Grand Prix carbureted
1978–1987 Pontiac Grand Prix carbureted
1964–1973 Pontiac GTO carbureted
1961–1973 Pontiac LeMans carbureted
1961–1970 Pontiac Tempest carbureted
